Its exceptional strength and versatility allow it to be flexibly applied to all roof types, especially corrugated/trapezoidal metal roofs and fiber cement tile/asphalt tile roofs, and can be installed on both wooden rafters and steel purlin.
Payment :
T/TProduct Origin :
ChinaColor :
Silver/BlackLead Time :
7-14 daysWind Load :
CustomizedSnow Load :
CustomizedTilt Angle :
Parallel to RoofPanel Layout :
Landscape/PortraitDesign Standards :
AS/NZS 1170 / DIN 1055 / JIS C8955

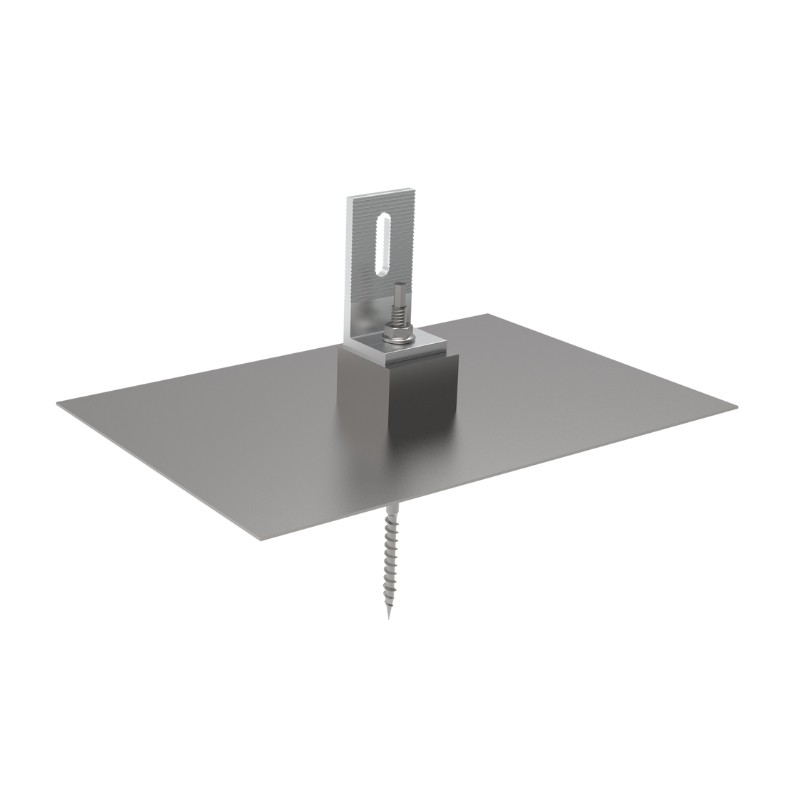

WATERPROOF PLATE KIT:
1 - Suitable for fiber cement/asphalt shingle roofs.
2 - Material: Stainless Steel & EPDM & Aluminium (AL6005-T5)
3 - Help prevent rainwater infiltration.
4 - It has adopted the self-tapping screw to stick into purlin, which has increased the strength of the whole system. Different purlin can use corresponding self-tapping screws, which can offer more convenient, economical and safe installation.
HANGER BOLT KIT& L FEET:
1 - Suitable for corrugated roofs & trapezoidal metal roof.
2 - Hanger Bolt Kit
Material: Stainless Steel & EPDM
- Hanger Bolt+L Feet
Material: Stainless Steel & EPDM & Aluminium (AL6005-T5)
3 - Rubber gaskets help prevent rainwater infiltration.
4 - It has adopted the self-tapping screw to stick into purlin, which has increased the strength of the whole system. Different purlin can use corresponding self-tapping screws, which can offer more convenient, economical and safe installation.
Hanger Bolt Common Spec.(mm):
- M8*200/250/300mm
- M10*200/250/300mm
- M12*200/250/300mm
Why choose June-Rack ?
1. One-class quality with competitive price.
2. All components with a high level of corrosionresistance surface treatment---offering 12 year warranty and 25 year life time.
3. Excellent design ability---our engineer has 10 years' experience of structure engineering for solar mounting systems.
4. OEM & ODM & customization service are welcome.
June-Rack, the leading supplier of the whole industry chain in PV mounting system. Established in 2010, its reliable and economical solar racking system has been sold to more than 50 countries and regions.
